RX Rigid Tooth Flank Helical Gear Units

Brand Name : JIG

Model Number : RX37/57/67/77/87/97/107/127/157

Place of Origin : Shenzhen, China

MOQ : 1 piece

Payment Terms : L/C, D/A, D/P, T/T

Packaging Details : Wooden box

Product classification : RX Series rigid tooth flank helical gear units

Power : 0.12kW-160kW

Transmission ratio : 3.41-289.74

Protection level : IP44-58

Allowable torque : 61-23200N. m

Contact Now

Characteristics and advantages

1.The R series gear reducer designed specifically for mixers can withstand large axial and radial forces.

2. Small bias output, compact structure, utilizing box space, using an integral cast box, with good stiffness, can improve shaft strength and bearing life.

Specification parameters

Installation form: base type, flange type, small flange type, torsion arm type.

Output method: solid shaft

Input method: directly connected to the motor, shaft input, and connecting flange input.

Technical parameters: speed ratio i=3.41-289.74, R/R combination up to 18125

Efficiency: Level 2≈96%, Level 3≈94%, R/R combination≈85%

RX Rigid Tooth Flank Helical Gear Units

Product Tags:

Tooth Helical Gear Units

Flank Helical Gear Units

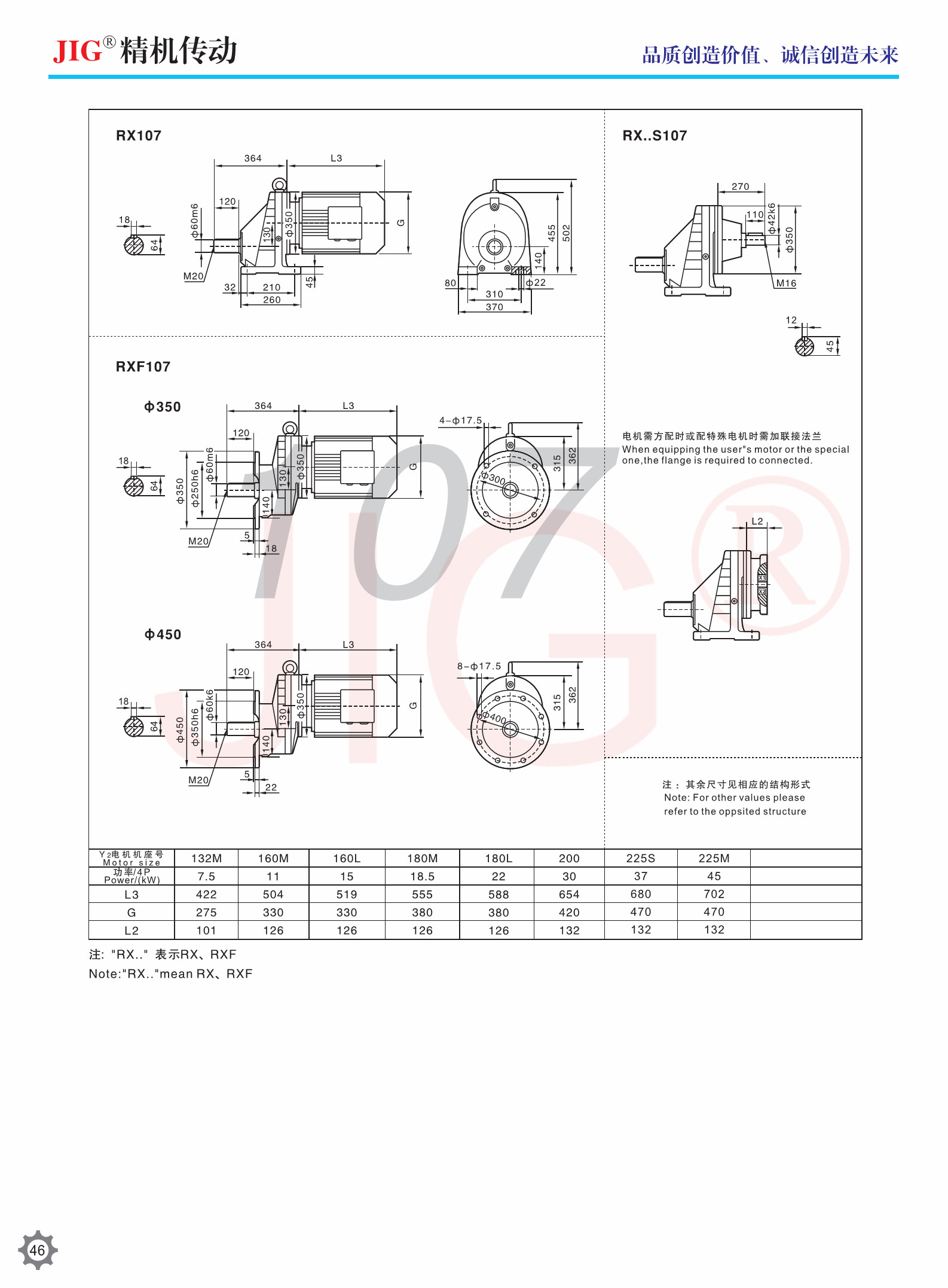

RX Rigid Tooth Flank Helical Gear Units Images
